The latest Service Programming System (SPS) update in Techline Connect features a new option when selecting the SPS programming type. (Fig. 1) This new requirement is designed to help reduce errors — as well as the significant amounts of time and costs involved when corrections are necessary — caused by the incorrect programming type being selected during programming.
Fig. 1
Previously, the SPS selection defaulted to Reprogram when programming a module – whether it was the current module that required only reprogramming or a new module that had been installed.

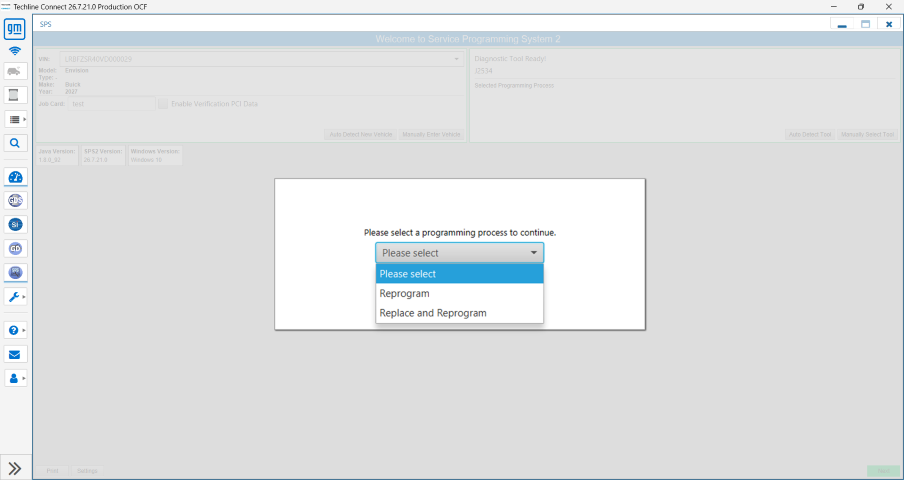

After the SPS update, to program a control module, one of the following options must be selected: (Fig. 2)
- If only reprogramming the module in the vehicle, select Reprogram.
- If the module has been replaced with a new module, select Replace and Reprogram.
Fig. 2
Going forward, technicians will be prompted to make the appropriate selection while programming a control module.
If you have questions regarding SPS programming, open a case with the Techline Customer Support Center (TCSC) using CX Connect. If additional support is needed, contact TCSC at 1-800-828-6860. Please have the case number available when calling.
– Thanks to Chris Henley
