Some 2022-2025 Silverado 1500, Sierra 1500; 2024-2025 Silverado 2500HD/3500HD and Sierra 2500HD/3500HD trucks may have a bubbling or delaminating condition on the wood trim of the door panel. (Fig. 10)
TIP: This condition affects the appearance of the wood trim part of the panel. It does not require replacement of the entire door trim panel.
Fig. 10
If delamination of the wood trim is found, remove the door trim panel.

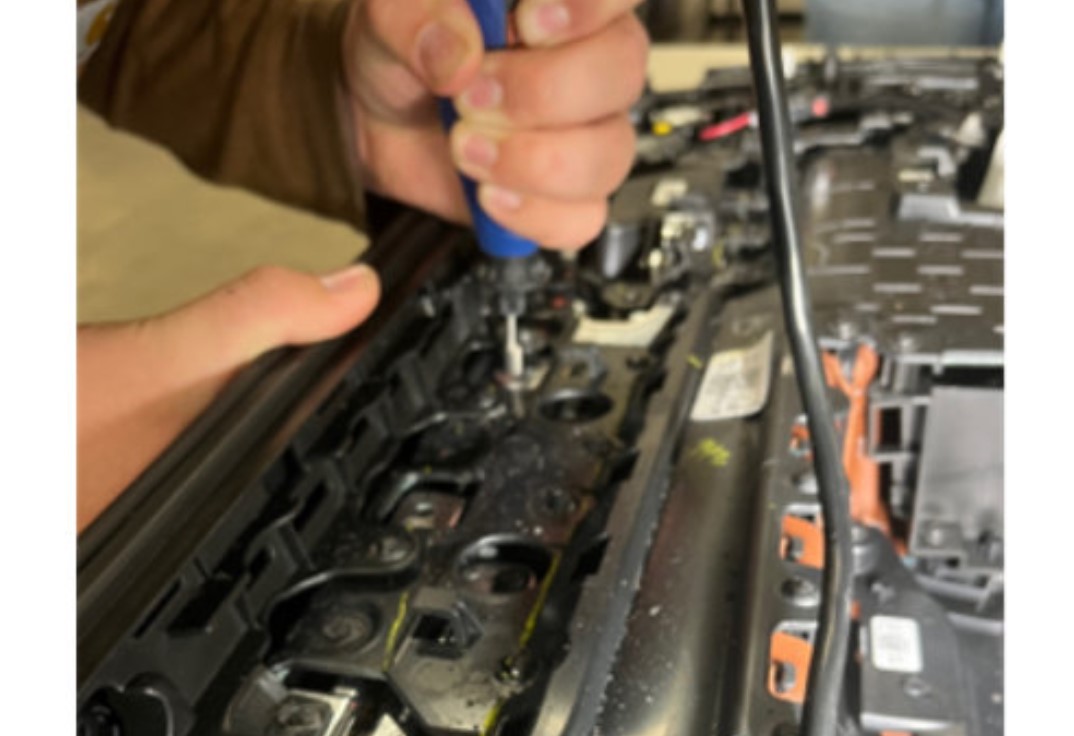

From the back of the panel, drill out the 9 welded heat stakes. (Fig. 11)
Fig. 11

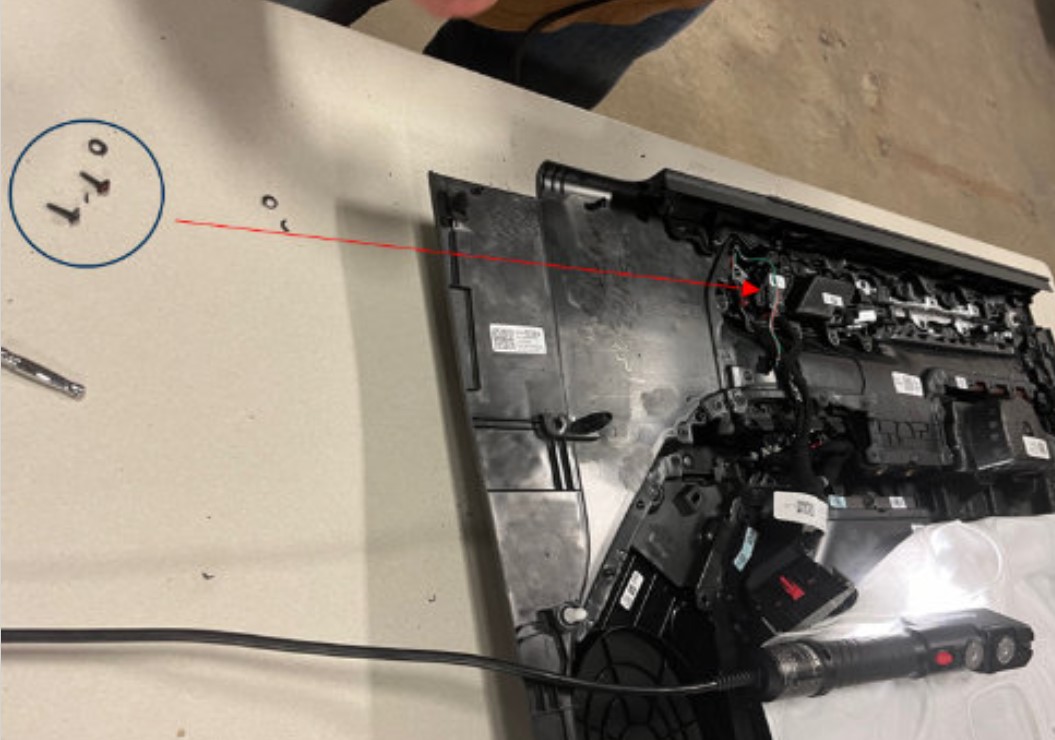

Next, remove the 2 torque screws to push out the decorative trim part. (Fig. 12) It may be necessary to disconnect and remove the LED wire to prevent damage.
Fig. 12

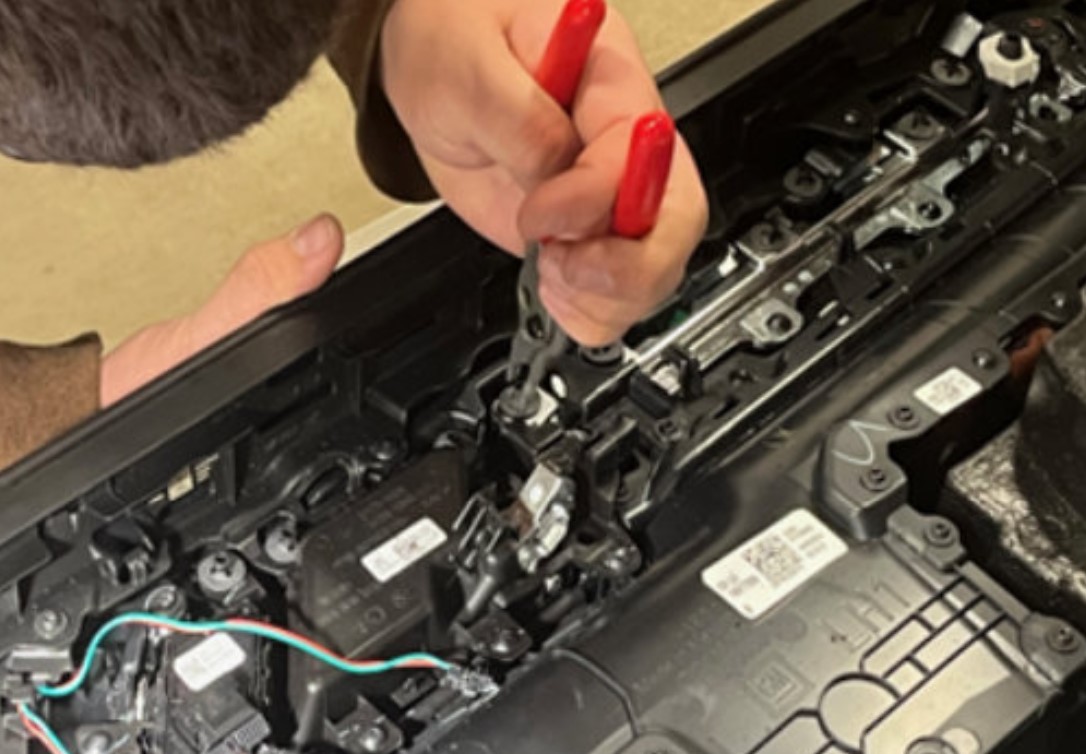

Install the new decorative trim part, pal nuts and 2 torque screws. Next, reinstall the door trim panel. (Fig. 13)
Fig. 13
Refer to Bulletin #25-NA-141 for additional information, including part numbers for the decorative trim part.
