Before replacing the heated steering wheel on some 2021-2022 CT4, CT5; 2022 Enclave, XT5, XT6, Blazer, Silverado 1500 LTD, Silverado 2500HD/3500HD, Tahoe, Suburban, Traverse, Acadia, Sierra 1500 Limited, Sierra 2500HD/3500HD, Yukon; and 2022-2023 XT4 models due to the industry-wide semiconductor shortage, it’s important to check that the correct steering wheel for the vehicle application has been ordered. (Fig. 6) The Electronic Parts Catalog may not clearly differentiate between the appropriate parts for some 2022 model year vehicles equipped with Global A or Vehicle Intelligence Platform (VIP), or Global B, technology.
Fig. 6
If the incorrect steering wheel is installed, the cruise control switch and heated steering wheel switch will be inoperative.
Check the Engineering Year RPO
The steering wheel for Global B vehicles was introduced partway through the 2022 model year. Currently, the parts catalog shows 2022 and prior model years for Global A vehicles and 2022 and later model years for Global B vehicles.

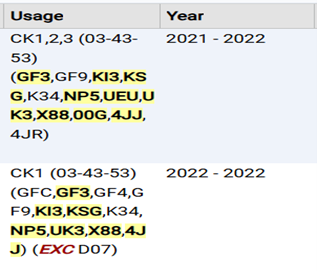

The Engineering Year RPO in the vehicle build should be used to determine if a 2022 model year part is for Global A or Global B applications. Vehicles with J21 (Engineering Year 2021) use Global A and J22 (Engineering Year 2022) use Global B. (Fig. 7)
Fig. 7
The parts catalog is being updated to add the J21 and J22 RPOs to the catalog for additional clarification. Be sure to check the applicable model years to verify if the part applies to Global A or Global B vehicles.
Replacement Tips
Steering wheel bolts installed during manufacturing require high torque efforts to remove. The only acceptable bit for removing and installing the steering wheel bolt is a T50 Torx bit. Do not use any other size bit or a worn bit.

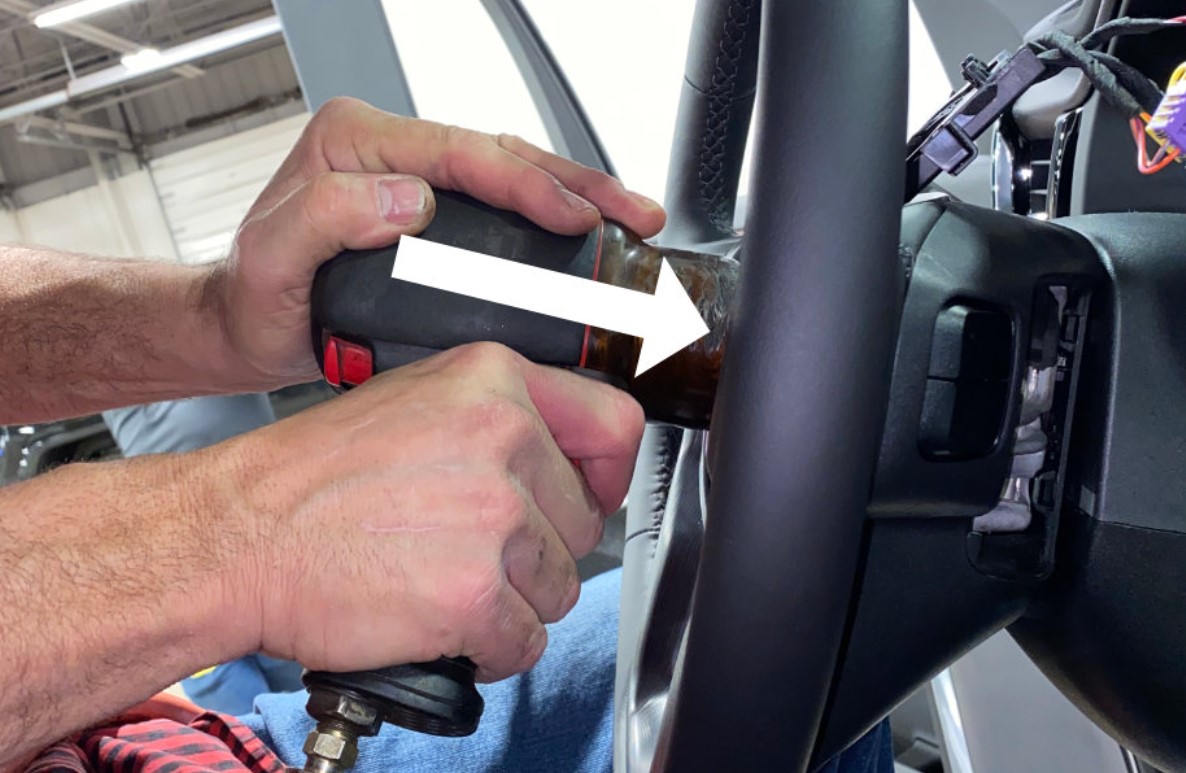

If a power tool is used to remove the steering wheel bolt, the tool must have a minimum torque rating greater than 75 Nm (55 lb.-ft.) and both the power tool and the T50 Torx bit must be positioned perpendicular to the bolt recess. (Fig. 8)
Fig. 8

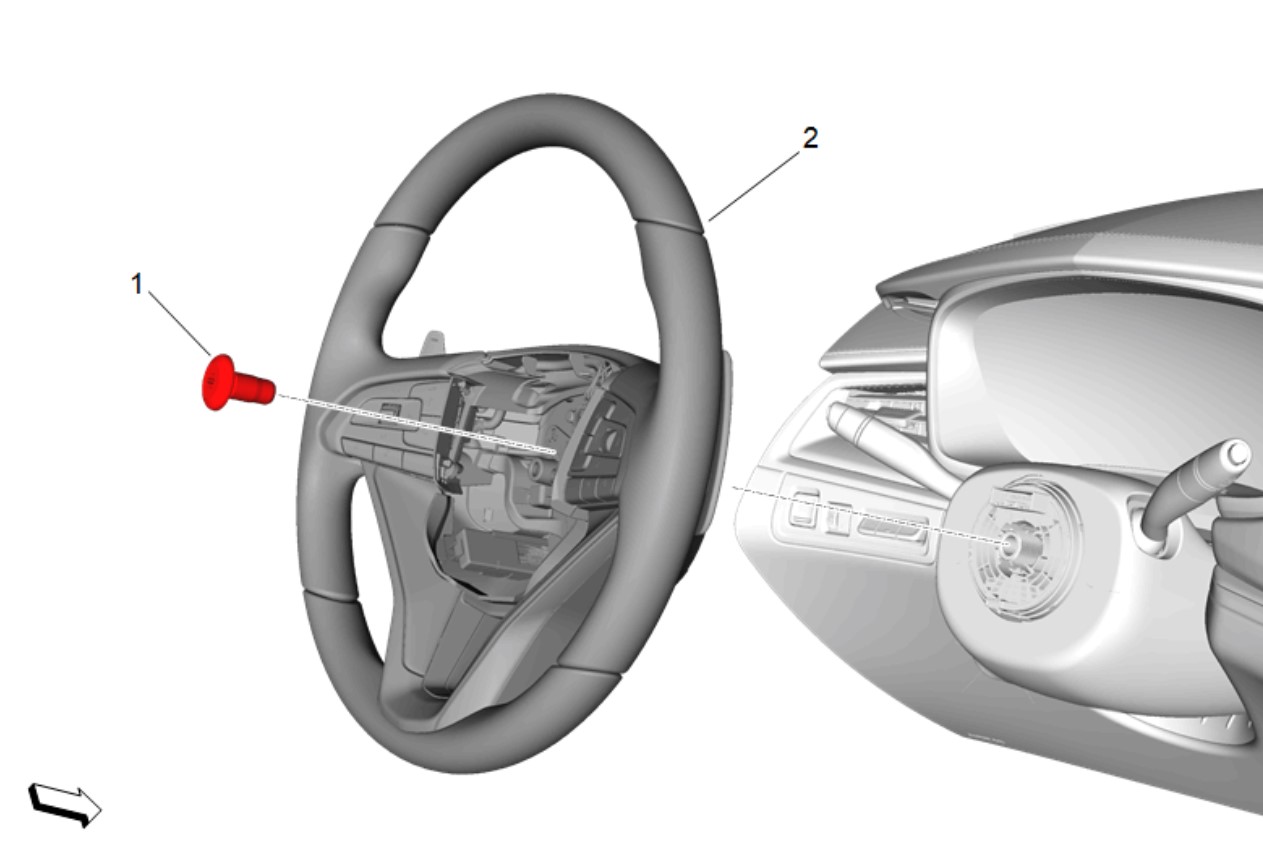

Apply appropriate downward force to maintain engagement of the bit-to-bolt recess during bolt removal. (Fig. 9)
Once the steering wheel is removed, be sure to transfer components as necessary. Refer to Steering Wheel Replacement in the appropriate Service Information for more information.
Fig. 9
– Thanks to Kacy McCure and Joe Di Trapani
